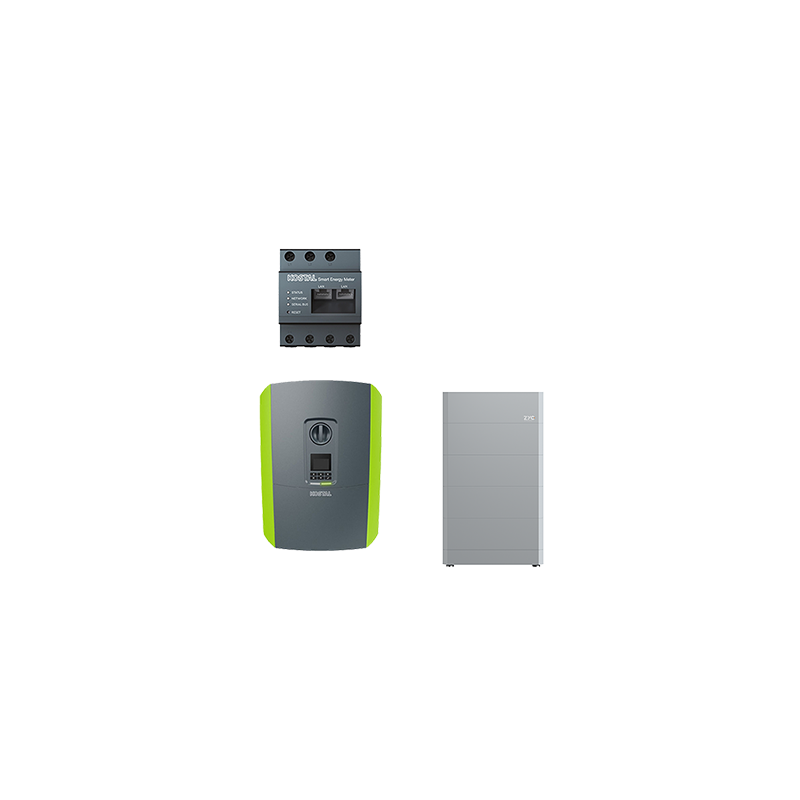

ZYC SIMPO HV 12.8 + PLENTICORE PLUS 7.0 G2

This combination gets things moving. The tried-and-tested Kostal Plenticore Plus G2 hybrids and the fresh ZYC SIMPO high-voltage storage system. The proven stacking concept enables up to 28.8 kWh of usable capacity per unit. And that's not all - up to 8 towers with a total of 230.4 kWh can be connected in parallel. Plenty of potential for this fresh storage pair.

Product advantages:

? Powerful storage package

? Simple network connection with each other as a daisy chain

? Cable and screwless installation

? Up to 8 towers can be cascaded (230.8 kWh)

? Certified battery safety according to VDE 2510-50

Product features System:

? AC power: 7.0 kW

? Number of MPPT: 2 + 1 (PV / Bat)

? DC input current: 13 A per MPPT

? AC connection: 3-phase

? Communication: Wifi, 2 x LAN, RS485, 4 x Dig-In (FRE), 4 x Dig-Out

? Protection class: IP65

? Cooling: active

? Weight: 21.6 kg

Product features Storage:

? Battery capacity (usable): 12.8 kWh

? Extension time window: unlimited

? Cell chemistry: LFP

? Interfaces: CAN 2.0A, Modbus RS485

? System configuration: 2 - 9 storage modules

? Cascadable: up to 8 towers in parallel

? Nominal voltage: 256 V

? Protection class: IP65

? Dimensions: 1050 x 610 x 240 mm (H x W x D)

? Weight: BMS + base: 20.0 kg, 4 storage units 36.0 kg each

? Warranty: 10 years

Activation via PLENTICOINs:

General (all G1/G2 Plenticore plus series, MP plus series, Enector Wallbox):

Activation of the storage function: 1 PLENTICOIN

Activation of the Wallbox Smart Features: 2 PLENTICOINS

Plenticore G3 Series:

Increase by one power class (1 level) within the S / M / L series: 1 PLENTICOIN

Increase to maximum power (2 levels) within the S / M / L series: 1+1 PLENTICOIN

Activation of the storage function: 3 PLENTICOINS

Scope of delivery:

? 1 x Kostal Plenticore Plus 7.0 G2 hybrid inverter (item 0152313)

? 1 x ZYC SIMPO HV Battery Management System (item 0157730)

? 4 x ZYC SIMPO HV storage module (item 0157729)

? 1 x Kostal KSEM G2 Smart Meter (item 0151118)
