Solis

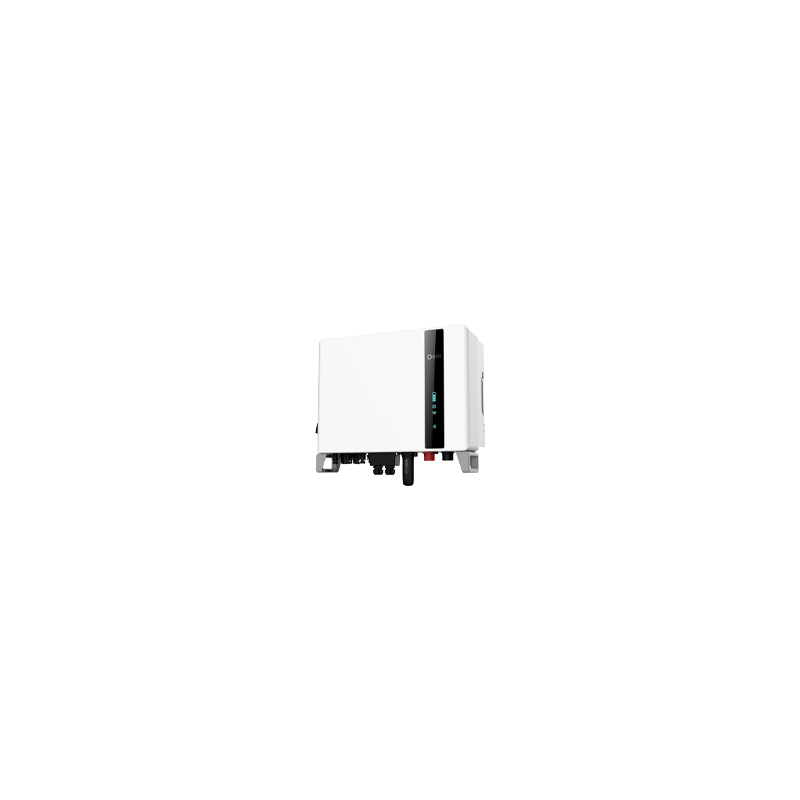

S6 10kW 3PH Hybrid Inverter (incl. 3PH meter)
€1,426.29
VAT included
Quantity
In stock at the supplier (delivery time 5-10 business days)
412 Items

Ask about the product on WhatsApp
Description

**** Not approved for the Belgian market! ***

Solis S6 10kW 3ph Hybrid Inverter

  • 4 MPPTs, suitable for rooftop installations in residential buildings with various array orientations
  • Supports unbalanced and half-wave loads at the grid connection and backup connection
  • Compatible with battery models from various brands, such as Pylontech or BYD
  • Supports up to 10 units in parallel on grid and backup.
  • Supports purely off-grid applications with generator communication support
  • Controllable and rechargeable via the SolisCloud App to avoid on-site visits
  • Up to 16A MPPT current input to support 182mm/210mm solar modules
  • Up to 50 A/10 kW maximum charge/discharge power with the industry's highest support power of 10 kW for backup loads
  • Natural convection design without external fans

Notes:

  • The inverter is delivered including the data logger stick S2-WL-ST (WiFi & LAN) and a 3PH meter from Eastron (the supplied meter carries Solis-specific firmware)

Product Details
Solis
SOL-S6-EH3P-10.0K-H-EU
412 Items
Supplier Part No:
S6-EH3P10K-H-EU
Weight:
31.8 kg
Rated Power:
10,000 W
Min PPT Voltage:
200 V
Max PPT Voltage:
850 V
DC Startup Voltage:
160 V
DC Shutdown Voltage:
160 V
Max Input Voltage:
1,000 V
Max DC Power:
16,000 W
Max AC Power (5 Minutes):
11,000 W
Surge AC Power (1 Second):
12,000 W
Max DC Current:
64 A
Max DC Inputs:
4
Has DC Fuses:
0
Connector:
MC4
Included Connectors:
4
Euro Efficiency:
97.7 %
Transformer:
none
MPPT Quantity :
4
Has Integrated DC Switch:
Yes
Warranty:
10 years
